NEWLY DESIGNED FOR USE WITH COMPACT TRACTORS
Quickly turns rough, rocky ground into a finely-groomed seedbed, to save time and money.
Easy to install on you existing loader buckets and easy to remove - just two pins and two hoses.
The same Rockaway can be used on several buckets.
|
FACTS ABOUT THE ROCKAWAY LANDSCAPING TOOL
Heavy-duty, 1/4" steel shroud withstands heavy pounding and abuse.
Machine-cut holes enhance view of working rotor and allow fine dirt to flow through.

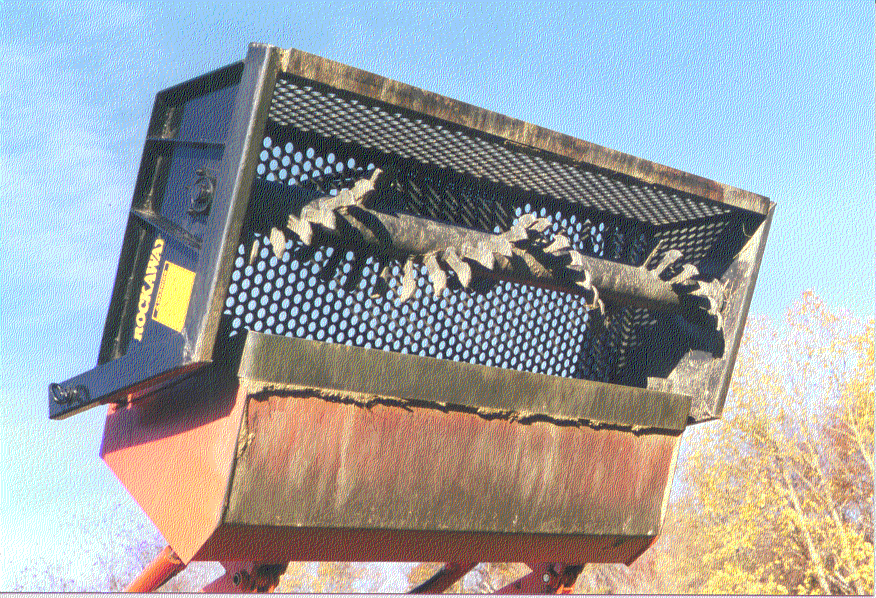

One rotor, with carbide-tipped teeth, does all the work; provides years of trouble-free service.
Spirally mounted, carbide-tipped mining teeth are incredibly strong and pull material towards the center to eliminate dirt trails.
Low maintenance - just two greaseable bearings and one chain.
Needs dumping less often than competition.
Takes up less trailer space than competition.
|

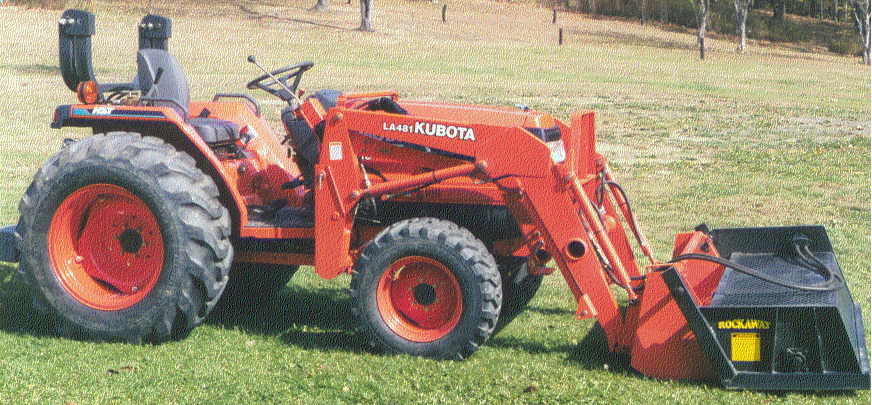

Affordable, low maintenance, quality landscaping tool, originally designed for skid-steers, has been redesigned to be used with most compact tractors.
The perfect implement for all professional landscapers and excavators.
The ROCKAWAY will save you money by decreasing the amount of time spent on each job.
THIS IS THE FIRST IMPLEMENT OF THIS TYPE DESIGNED TO BE USED WITH COMPACT TRACTORS.
|
TO USE THE ROCKAWAY, YOUR TRACTOR MUST:
Have a pump capable of putting out at least 7 gpm or more.
Be equipped with a remote hydraulic valve and hydraulic lines running up loader arm and ending within about 2 feet of the bucket.
Be able to move at slow speeds while maintaining constant RPMs (hydrostatic and creeper gear transmissions are ideal).
Rockawaytool@aol.com
IF YOU HAVE ANY QUESTIONS ABOUT THIS PRODUCT,
PLEASE CALL 814-322-4948
OR E-MAIL: Rockawaytool@aol.com |
OPERATION OF THE ROCKAWAY LANDSCAPING TOOL
After the Rockaway has been installed on the tractor, lower the bucket to the ground and tilt it forward about 15 degrees. No down pressure is needed. Use the float position if applicable.
With engine throttle at about half, engage the rotor and begin reversing slowly so that rocks and dirt can be processed completely. At this point, dirt and rocks are processed together through the rotor. The bucket should be about half full for the Rockaway to operate correctly. If you dump the bucket too often, the unit will not be able to process the soil well enough, and you will dump too much dirt.
When the bucket is kept at about half full, the dirt clumps are broken up, leaving only the rocks in the bucket. Dirt, fine enough for seeding, passes through the rotor and out through the Rockaway screen. You may have to make a rough pass in some conditions, depending on how rocky the soil is, and then a final pass to level the soil and finish for seeding.
When the time comes to empty the bucket, raise it, along with the Rockaway, and move to the dumping area. When the loader arms are raised and the bucket with Rockaway is rolled forward, rocks are dumped out between the cutting edge and the rotor. Reversing the rotor may be helpful when dumping larger rocks. Remember, never dump the bucket higher than the safety instruction provided by tractor manufacturer.
Although the Rockaway performs its rock-picking functions in reverse, it is also designed to push small amounts of dirt when moving forward. Operators find this a convenient way to level the ground being worked on.
|
|
|
